17.0 inch LB170E01-SL01 LG LCD Panel Normally Black for Industrial Application

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

17.0 inch LB170E01-SL01 LG LCD Panel Normally Black for Industrial Application

Brand Name : LG Display

Model Number : LB170E01-SL01

Certification : ISO9001

Place of Origin : korea

MOQ : 1

Payment Terms : Western Union, MoneyGram, T/T

Supply Ability : 500PCS/DAY

Delivery Time : 2-3 Working Days after order confirmation

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Panel Brand : LG Display

Panel Model : LB170E01-SL01

Panel Type : a-Si TFT-LCD , LCM

Panel Size : 17.0 inch

Resolution : 1280(RGB)×1024 , SXGA

Display Mode : IPS, Normally Black, Transmissive

Contact Now

17.0 inch LB170E01-SL01 LG LCD Panel Normally Black for Industrial Application

LB170E01-SL01 Product Information

Panel Brand : LG Display
Panel Model : LB170E01-SL01
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 17.0 inch
Resolution : 1280(RGB)×1024 , SXGA
Display Mode : IPS, Normally Black, Transmissive
Active Area : 337.92×270.336 mm
Outline : 368×306×14.8 mm
Surface : Antiglare, Hard coating (3H)
Brightness : 400 cd/m² (Typ.)
Contrast Ratio : 1000:1 (Typ.)
Display Colors : 16.7M (8-bit) , CIE1931 72%
Response Time : 13/9 (Typ.)(Tr/Td)
Viewing Angle : 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : WLED Embedded (LED Driver)
Signal Interface : LVDS (2 ch, 8-bit) , 30 pins
Input Voltage : 5.0V (Typ.)

Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.

We can do for you:

  1. Provide excellent LCD screen replacements with competitive price.
  2. Safe, quick and efficient supply chain.
  3. Plenty of stocks. Branded ones include LCD Screen panels for LG, Samsung, Sharp, BOE, Chimei and so on.
  4. Your problems will be replied within 24 hours.
Panel Size : 17.0 inch
Dot Resolution : 1280(RGB)×1024 (SXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 96 PPI
Aspect Ratio : 5:4 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.088×0.264 mm (H×V)
Pixel Pitch : 0.264×0.264 mm (H×V)
Weight : 1.26Kgs (Typ.)
Surface : Antiglare, Hard coating (3H)
Active Area : 337.92×270.336 mm (H×V)
Bezel Area : 341.5×274.6 mm (H×V)
Outline Dimension : 368×306 mm (H×V)
Outline Depth : 14.8 (Max.) mm
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
LG 1.3 Circular P-OLED LG Display 1.3" 320×320
LH300WQ1-ED01 LG Display 3.0" 240×400
LB050S01-RD02 LG Display 5.0" 800×600
LB050S01-RD01 LG Display 5.0" 800×600
LC430DUY-SHA3 LG Display 43" 1920×1080
LD490EPY-SHP1 LG Display 49" 1920×1080
LD550DPY-SHP1 LG Display 55" 1920×1080

Packaging & Delivery

· Delivery Lead Time :2~3 weeks

· Minimum Order :1 pcs LCD Panel

· Supply Ability :100 PCS / Per Day

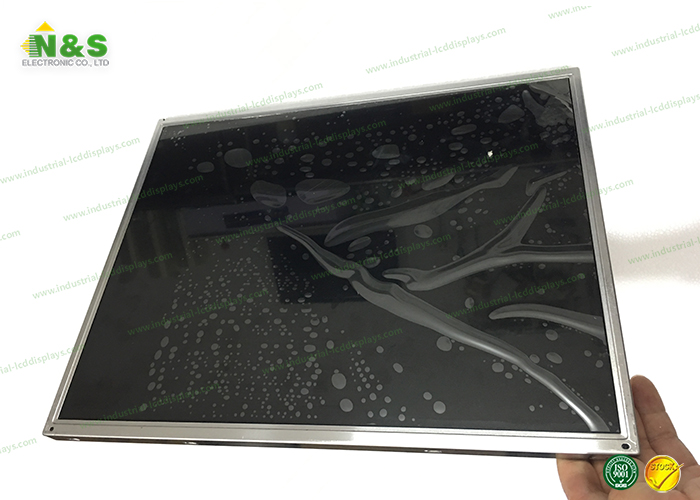

LB170E01-SL01 Picture

17.0 inch LB170E01-SL01 LG LCD Panel Normally Black for Industrial Application
