Normally Black LP156WF4-SLBA Surface Antiglare, Hard coating (3H) 15.6 inch 1920×1080 Outline 359.5×218.53×3.4 mm
Our Advantage :
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.
Feedback:
(1) Your early confirmation will be highly appreciated after receiving the item.
(2) If you are satisfied with our item, pls contact to us also for other items, actually, we are not only own professional sourcing lines for AUO, LG, Samsung, Tianma, KOE, NEC, Hitachi, Optrex and more.
Below are our other LCD panels stock for your easy reference:
| Panel Model |
Brand |
Size |
Resolution |
| LC470DUT-SEF2 |
LG Display |
47" |
1920×1080 |
| LC550EGY-SHM1 |
LG Display |
55" |
3840×2160 |
| LC550EQK-FGK3 |
LG Display |
55" |
3840×2160 |
| LC420DUJ-SGE3 |
LG Display |
42" |
1920×1080 |
| LH450WX3-SH01 |
LG Display |
4.5" |
720×1280 |
| LC490EQJ-SGE2 |
LG Display |
49" |
3840×2160 |
| LH470WX3-SH02 |
LG Display |
4.7" |
720×1280 |
| LH600WX1-SH01 |
LG Display |
6.0" |
720×1280 |
| LC490EQJ-SGK1 |
LG Display |
49" |
3840×2160 |
| LC420EQJ-SGE2 |
LG Display |
42" |
3840×2160 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
LP156WF4-SLBA Basic Information
| Panel Model |
LP156WF4-SLBA |
| Panel Brand |
LG Display |
| Descrition |
a-Si TFT-LCD ,15.6 inch, 1920×1080 |
| Panel Type |
a-Si TFT-LCD |
| Model Alias |
LP156WF4 (SL)(BA) |
| Operating Temperature |
0 ~ 50 °C |
| Storage Temperature |
-20 ~ 60 °C |
LP156WF4-SLBA Mechanical Features
| Dot Resolution |
1920(RGB)×1080 (FHD) |
| Pixel Configuration |
RGB Vertical Stripe |
| Pixel Density |
141 PPI |
| Aspect Ratio |
16:9 (H:V) |
| Form Factor |
Flat Rectangle Display |
| Dot Pitch |
0.05975×0.17925 mm (H×V) |
| Pixel Pitch |
0.17925×0.17925 mm (H×V) |
| Weight |
320/330g (Typ./Max.) |
| Surface |
Antiglare, Hard coating (3H) |
| Active Area |
344.16×193.59 mm (H×V) |
| Bezel Area |
347.55×196.9 mm (H×V) |
| Outline Dimension |
359.5×218.53 mm (H×V) |
| Outline Depth |
3.4 (Max.) mm |
| Shape Style |
Flat (PCBA Flat, Depth 3.4~4.0mm) |
| Holes & Brackets |
Face mounting holes (4 pcs) on down slugs |
| Landscape or Portrait |
Landscape type |
| Touch Panel |
Without |
LP156WF4-SLBA Optical Features
| Display Mode |
AH-IPS, Normally Black, Transmissive |
| Brightness |
250 cd/m² (Typ.) |
| Contrast Ratio |
400 : 1 (Min.) (Transmissive) |
| Display Color |
262K (6-bit) |
| Color Gamut |
60% NTSC (CIE1931) |
| Response Time |
35 (Typ.)(Tr+Td) |
| Viewing Angle |
80/80/80/80 (Min.)(CR≥10) (L/R/U/D) |
| Viewing Direction |
Symmetry |
| White color Chromaticity |
Wx:0.313; Wy:0.329 |
| White Variation |
1.40/1.60 (Typ./Max.)(13 points) |
| Sunlight Readable |
N |
Product Tags:
|
|

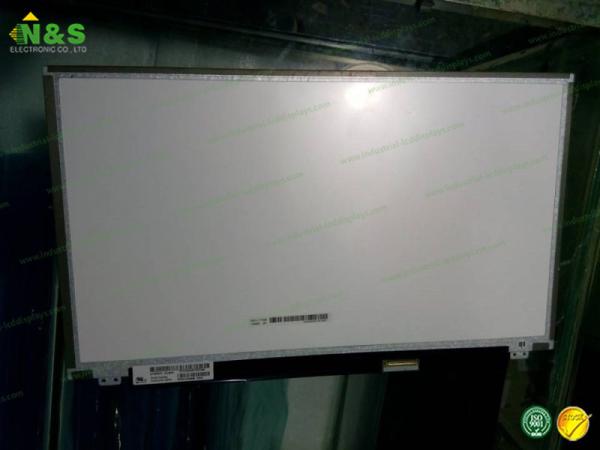

Normally Black LG LCD Panel LP156WF4-SLBA Surface Antiglare / Lg Display Monitor Images
|
